Project Description

Fabrication and manual erection of hot-dip galvanized outriggers for Over-Head Equipment (OHE) foundations along the Western Dedicated Freight Corridor (WDFCC) viaduct sections at Kalamboli and Kopar, Maharashtra. Work was executed as a balance works contract under Tata Projects Limited, the prime contractor for DFCCIL. All work was carried out strictly as per approved drawings and site engineer instructions.

Materials Used

Hot-dip galvanized steel (outrigger assemblies)

Technical Specifications

• Complete supply, fabrication, and erection scope including all manpower and resources
• Hot-dip galvanizing finish for corrosion protection
• Executed across active railway viaduct sites at Kalamboli and Kopar

Project Description

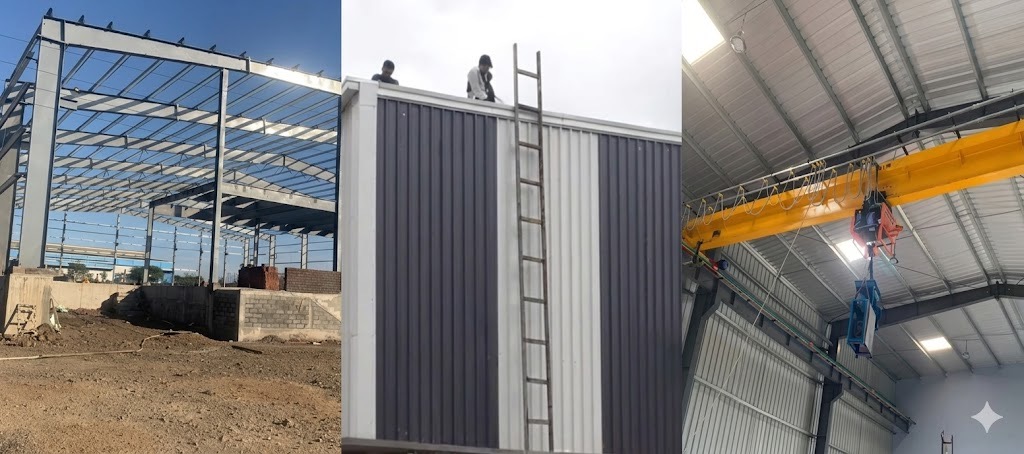

Complete design and build of a heavy-duty industrial steel shed complex for Montex Forge at Plot C-12, Taloja MIDC. The scope covered the full structural shell — including columns, rafters, bracings, and purlins — along with GI roofing, MS compound gates, GI drainage gutters, surface painting, and the supply and commissioning of a 5-ton EOT crane. This was a turnkey fabrication and erection project for an industrial manufacturing facility.

Materials Used

MS structural steel (IS:2062), 0.50mm GI colour-coated roofing sheets, GI box gutters, MS hollow section for gates

Technical Specifications

• Structural steel shed: columns, rafters, bracings, purlins, all connections per approved drawings
• GI roofing: 0.50mm colour-coated sheets with Z-purlins, J-bolts, ridge covers, and end flashings
• MS compound gates: heavy-duty sliding/swing type, square hollow section frame, MS flat bar infill, guide wheels, locking arrangement, primer + enamel paint finish
• GI box gutters: 200×150mm size with 100mm dia GI downpipes, hangers, brackets, endcaps
• Surface treatment: mechanical wire brushing + 2 coats red oxide zinc chromate primer + 2 coats synthetic enamel paint
• EOT Crane: 5-ton capacity, double girder, end carriages, crab unit, wire rope hoist, pendant-operated controls, end stops, rails, all electrical fittings as per IS:3177

Project Description

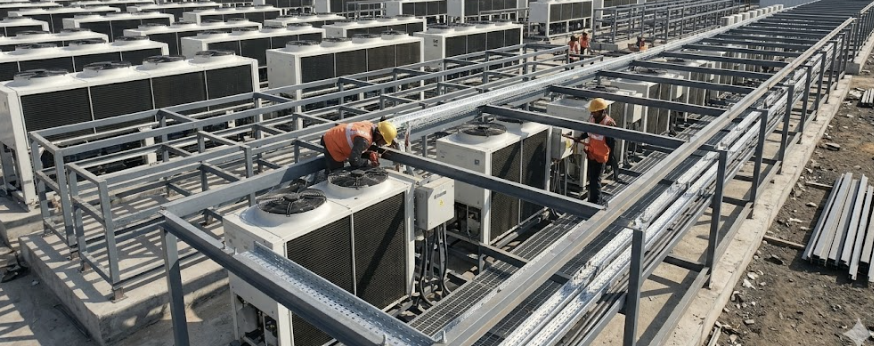

Fabrication and site erection of custom MS structural frames for industrial cooling units and condensing units at Coldstar Logistics' cold storage facility at Bhamboli, Tal-Khed, Pune. Work involved precision cutting, welding, and fitment at site. An additional scope covered structural shed fabrication with GI sheet fitting and erection. This project supported the expansion of cold chain infrastructure in Maharashtra.

Materials Used

Mild Steel (MS) structural sections

Technical Specifications

• Frames for cooling units and condensing units fabricated and erected individually
• Complete cutting, welding, and site fitment
• GI sheet cladding on structural shed

Project Description

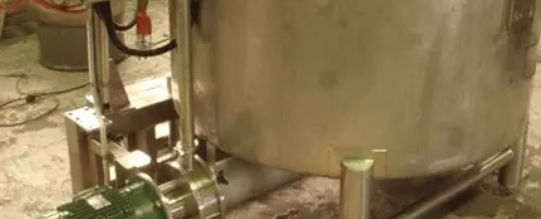

Engineering and fabrication of a high-specification 3,000-litre industrial contra mixer for Sathvaro Coatings Pvt. Ltd. at their Patalganga, MIDC facility. The machine features a triple-drive configuration with FLP (flameproof) motors and a comprehensive electrical control panel with ABB drives, designed for chemical processing in a hazardous area environment. All product-contact parts are fabricated in SS304.

Materials Used

SS304 (all contact parts), Mild Steel (non-contact frame); ABB make VFD drives; Schneider/Siemens contactors and MCCBs; Polycab/Finolex cables; Anchor make electrical switches

Technical Specifications

• Vessel: 1500mm Dia × 2000mm H, SS304, 8mm shell, 10mm bottom dish, 2" flush bottom Y-type valve, MS jacket
• Agitator shaft: 100mm Dia SS304 — 30 HP FLP motor (Crompton make)
• Screw shaft: 80mm Dia SS304 — 30 HP FLP motor (Crompton make)
• Cowl blade shaft: 80mm Dia SS304 — 60 HP FLP motor (Crompton make)
• Mixing tools: Butterfly/cowl blades, agitator, screw shaft
• Control panel: Floor-mounted, 16 SWG MS body, 14 SWG doors, powder-coated Siemens Grey, dual drive console with RPM meters, emergency stop, MCCB, contactors, lids up/down control, designed for non-hazardous area installation
• Nozzles: 3" × 2 nos., 18" main hole, 8" vent
• Discharge: 3" Y-type flush bottom valve
• Finish: 220 grit internal finish
• Working capacity: 3,000 kg; total vessel volume: 3,250 litres

Project Description

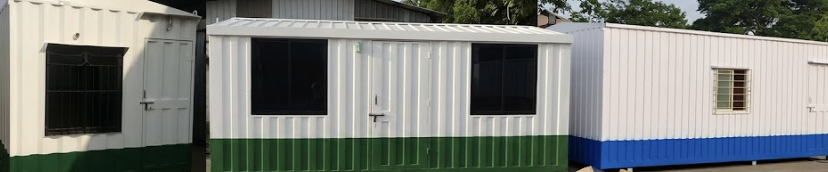

Fabrication and supply of a range of customized MS portable office cabins and store containers for Afcons Infrastructure's Water Conveyance Tunnel project (Kasheli–Bhiwandi to Mulund). Units were fully fitted with electrical wiring, workstations, AC points, LED lighting, and weather-resistant industrial paint finishes with Afcons branding. All cabins featured 19mm plywood flooring with vinyl overlay and were delivered ready-to-use at site.

Materials Used

MS fabricated structure, 19mm plywood flooring with vinyl, Polycab/KEI cables and wiring, Anchor electrical switches, Syska/Bajaj/Philips LED fixtures, industrial grade exterior paint (white and sky blue)

Technical Specifications

• All units: fully insulated walls and roof, internal conduit wiring, Anchor switches, RJ45 data sockets, weather-resistant industrial paint, strong vibration-free base structure

Project Description

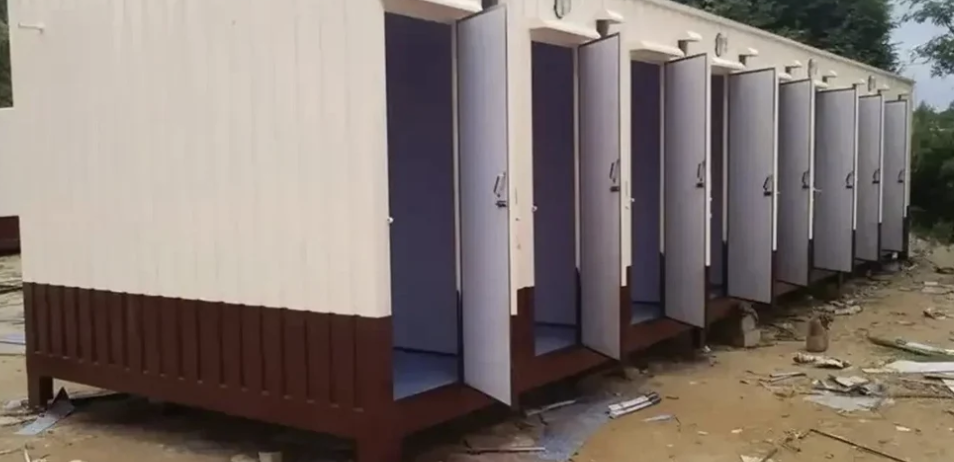

Fabrication and supply of MS porta cabins and toilet units for Afcons Infrastructure's Kasarvadavli–Kharbav Creek Bridge project under MMRDA. Units were delivered as a complete set covering office, utility, and sanitation needs for the site team. All units were built to Afcons specifications and delivered with test and warranty certificates.

Materials Used

MS fabricated structure (HSN 86090000 / 73082020)

Technical Specifications

• Porta Office Cabin: 20' × 10' × 8.6"
• Utility Cabin: 10' × 8' × 8.6"
• MS Toilet Porta Cabins: 4' × 4' × 8.6" (2 nos.)

Project Description

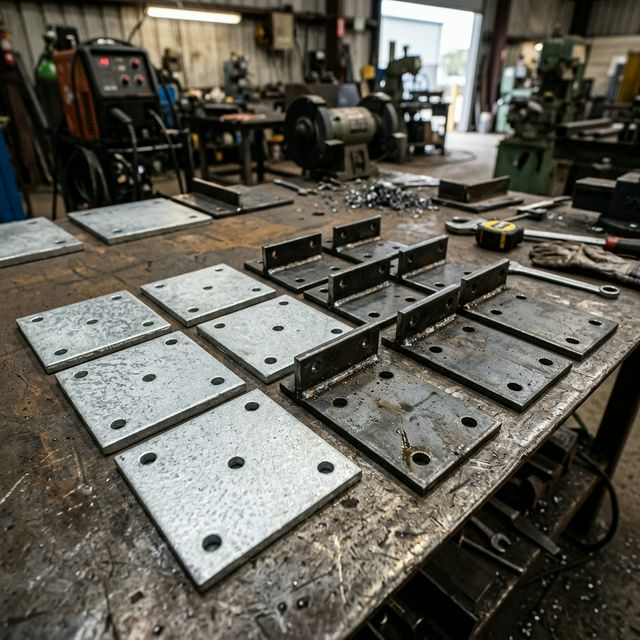

Precision fabrication and supply of a large series of galvanized iron and mild steel base plate assemblies used for OHE bracket and cable tray mounting within railway tunnels for the WDFCC CTP-11 project, Tata Projects Limited. Assemblies were fabricated to tight dimensional drawings with drilled, cut, and galvanized finishes, including angle brackets, lug plates, flat sections, and large GI viaduct anchor plates. Multiple repeat orders confirm ongoing quality and delivery performance.

Materials Used

GI (hot-dip galvanized) plate — IS:7010 / 73011000; MS flat and angle sections — IS:2062; ISA 50×50×6 angle; MS base plates; GI flat bar

Technical Specifications

• Standard MS base plate assembly (small): ISA 50×50×6 angle, 150mm length, 2 nos. 12mm dia holes + MS base plate 100×100×10mm
• Standard MS base plate assembly (long): ISA 50×50×6 angle, 300mm length, 4 nos. 12mm dia holes + MS base plate 100×100×10mm
• GI flat bracket: 50×6mm GI flat, 8 nos. 14mm dia holes, M10×40 fasteners
• MS lug plate assembly: MS lug plate 100×75×10mm, 1 no. 14mm dia hole + MS base plate 100×100×10mm
• Large GI viaduct anchor plate (Type A): GI plate 890×890×22mm — with cutting, bending, galvanizing, holes for anchor fasteners
• Large GI viaduct anchor plate (Type B): GI plate 22mm×890mm×825mm — with cutting, galvanizing, anchor fastener holes
• Steel base plate 40mm: Heavy-duty single plate per approved drawing
• GI base plate (narrow): 22mm×100mm×825mm — cutting, galvanizing, anchor holes

Project Description

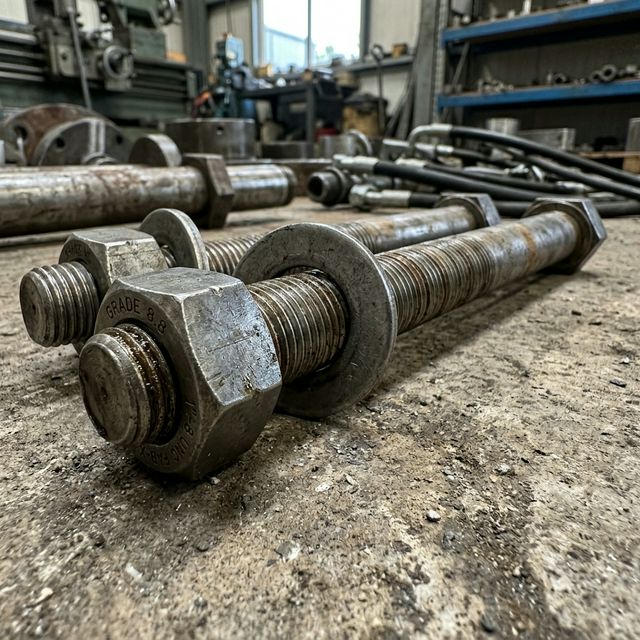

Fabrication of custom-engineered MS anchor bolt assemblies for winch machine foundations within the WDFCC CTP-11 railway tunnel. Each anchor was fabricated to a specific drawing with long thread length, double plain washers, and high-grade nuts — a critical structural fastening application requiring precise dimensional accuracy and Grade 10.9 nut specification compliance.

Materials Used

Mild Steel, Grade 10.9 nuts, plain washers

Technical Specifications

• M20 dia anchor bolt, 700mm total length
• 200mm thread length
• With 2 nos. plain washers and 2 nos. Grade 10.9 nuts each
• As per approved engineering drawing
